Transaction Attribute Population Processor Configuration

The eiConsole’s Transaction Attribute Population Processor Populates Transaction Attribute’s with a Values.

The purpose of the eiConsole’s Transaction Attribute Population Processor is to populate a Transaction Attribute based on an expression. The Transaction Attribute Population Processor creates, alters or otherwise populates a Transaction Attribute with a specified name using a supplied value or value expression.

The processor allows you to add one or more Transaction Attribute’s.  These attributes can be added in the transaction or global scope. As with all the components of the eiConsole, the user is presented with a graphical interface with easy to configure panels.

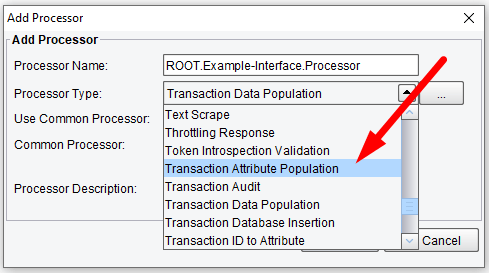

Select the Processor in the Add Processor dialog below.

Processor (Adapter) Configuration Drop-Down List

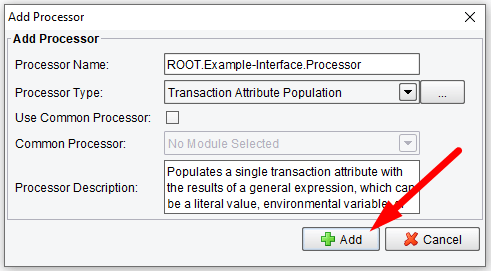

Select the Transaction Attribute Population tab and click on Add Processor.

Click on Add Processor

Basic Transaction Attribute Population Processor Configuration Options

The Basic tab allows you to set:

• Attributes to Set – add new attributes as attribute name/attribute value pairs
• Global Attributes – sets globally accessible attributes which are available to all transactions

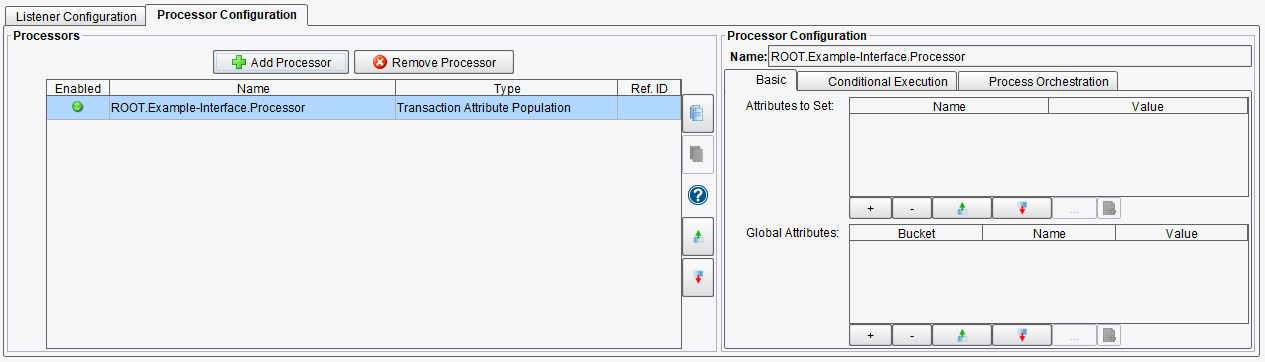

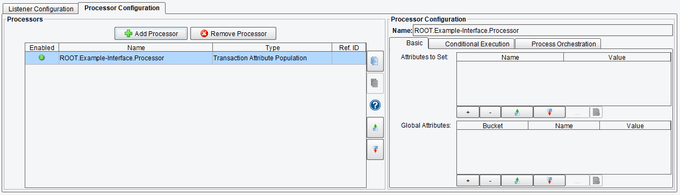

Transaction Attribute Population Processor Basic Configuration Options

Conditional Execution Transaction Attribute Population Processor Configuration Options

On the Conditional Execution tab, you can set additional Processor execution conditions. The transaction data-dependent condition may be specified here as an enhanced expression. If this expression returns anything other than TRUE (ignore case) – this processor will be skipped. No additional configuration for this Processor is required.

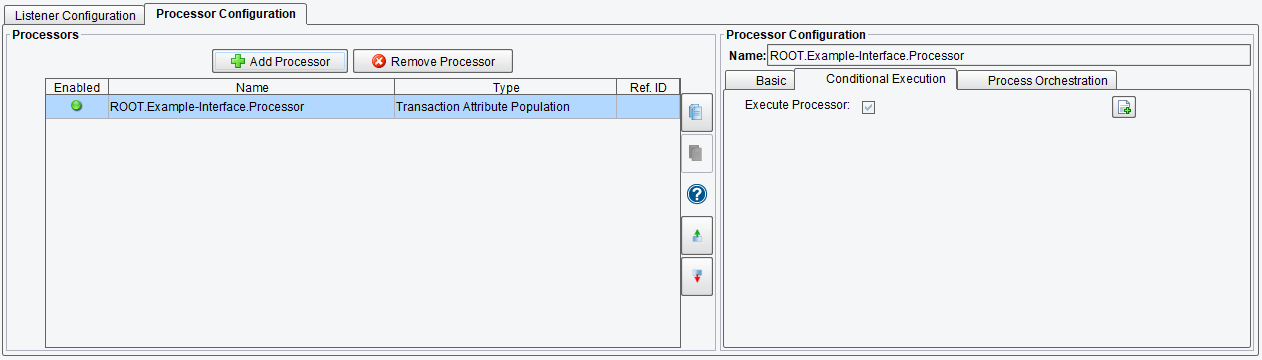

Transaction Attribute Population Processor Conditional Execution Configuration Options

Process Orchestration Transaction Attribute Population Processor Configuration Options

The Process Orchestration tab allows you to set:

• Attribute Orchestration Scope – the scope for Process Orchestration. There are two options: Transaction and Process.

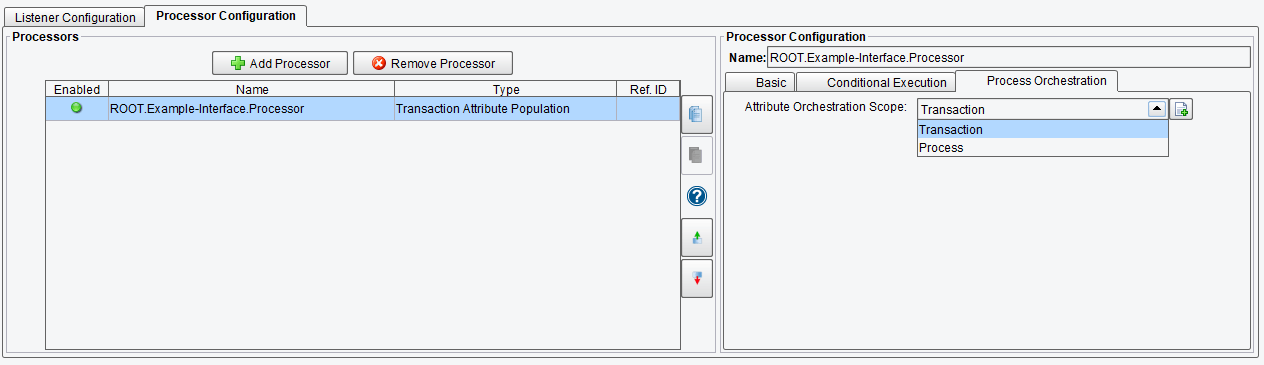

Transaction Attribute Population Processor Process Orchestration Configuration Options
