SSH TRANSPORT

    		•

    SSH Transport

    The XCS eiConsole and XCS eiPlatform Support Encrypted FTP Over SSH or SFTP

    The XCS eiConsole supports Encrypted FTP over SSH or SFTP. As with all the components of the eiConsole the user is presented with a graphical interface with easy to configure panels. To configure this Transport, select the Encrypted FTP (SSH/SFTP) option from the Transport Type dropdown.

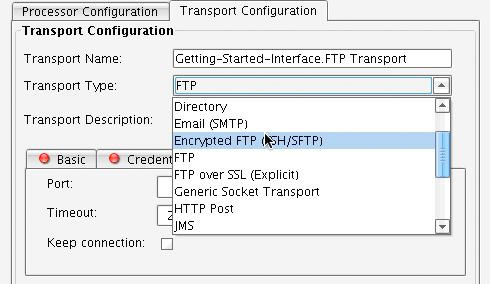

    FTP over SSH Transport, Transport Type dropdown

    Please see the FTP reference for details on the Basic configuration tab.

    FTP over SSH Transport, Basic configuration tab

    On the Credentials tab, the User name and Password are the same as in the FTP Transport. These are the User name and Password to be used to connect to the FTP server. In addition, you will have the Use key file configuration item. When checked you can provide a key file.

    FTP over SSH Transport,Credentials tab

    This is a key store or certificate to be used when authenticating to the FTP server.

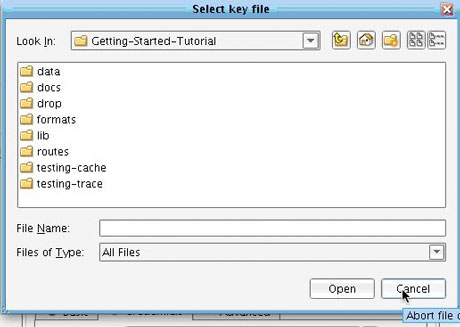

    FTP over SSH Transport, key store or certificate

    Please see the FTP configuration for details on the Port and Keep connection configuration items.

    FTP over SSH Transport, Port and Keep connection configuration item
