HTTP POST Command Line Listener

The XCS eiConsole Offers an HTTP Post Command Line Adapter

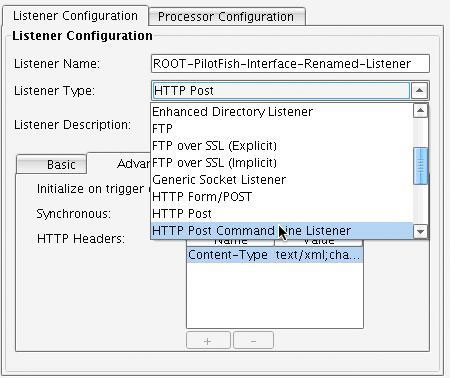

This HTTP Post Command Line Adapter (Listener) is similar to an HTTP Post. It can be invoked by a simple command line application. As with all the components of the eiConsole the user is presented with a graphical interface with easy to configure screens.

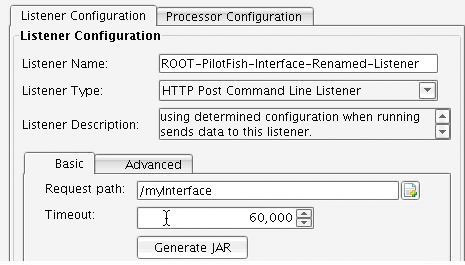

1. Basic – The Request Path specifies the additional information after the standard URL that the XCS eiConsole will use to determine if information coming inbound should be sent through this particular interface. For a synchronous HTTP Post you can also specify a timeout in milliseconds.

The Generate JAR button generates an executable JAR file that can be used to send information to this interface. After clicking this button you will see the following box:

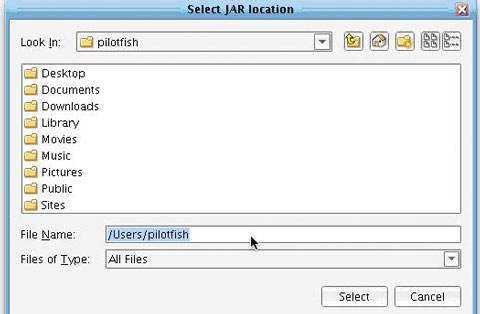

The Host describes where it will be when deployed. The Port specifies the port on which the XCS eiConsole is deployed. You can also select a JAR location where the JAR should be output.

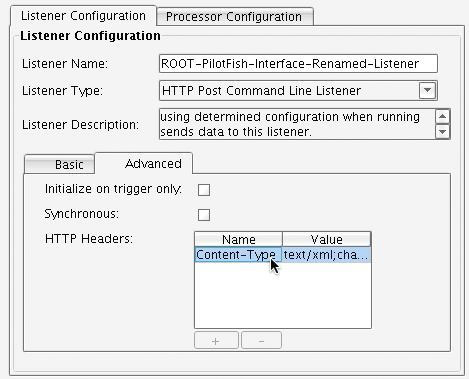

2. Advanced – This dialogue lets you choose to initialize this interface when triggered, choose synchronous or asynchronous behavior for this post and select HTTP headers that you would like to have present on the response.
